Homemade RCA to Ethernet Adapter

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

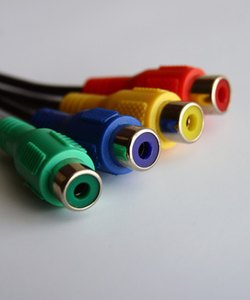

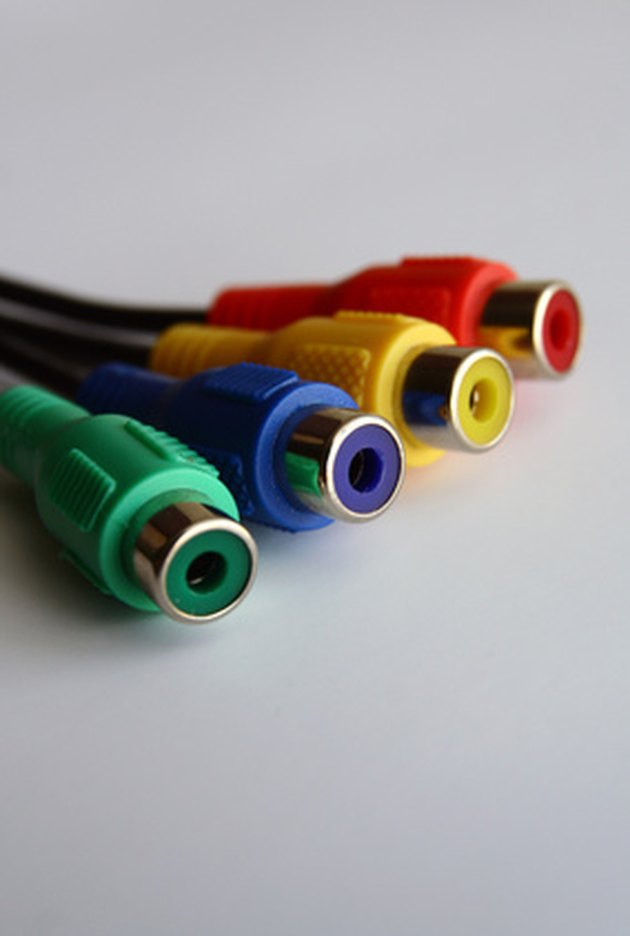

Four female RCA plugs

Ethernet cables contain eight copper wires, twisted together into pairs in order to reduce signal interference. Extremely common and relatively inexpensive to run over long distances, Ethernet twisted pair cable is often chosen as a medium for range-extending adapters. RCA phono connectors are color-coded audio and video cables used to carry a single analog signal. Composite video setups often employ three RCA cables: one for a single video stream, and two for stereo audio. Component RCA splits the video signal into three channels: brightness levels (luma), the difference between blue and luma, and the difference between red and luma.

Advertisement

RCA to Ethernet adapter

Video of the Day

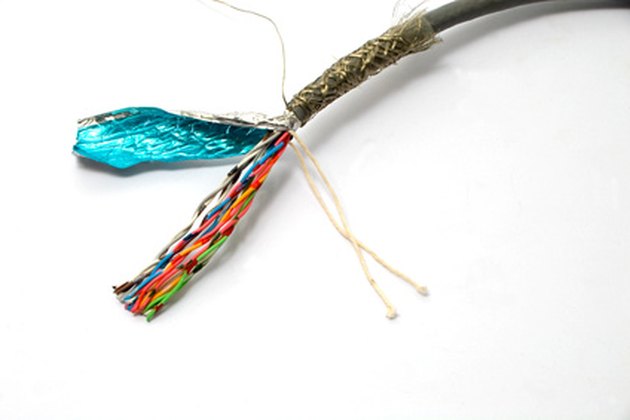

Exposed pairs of twisted copper wire found in ethernet cable.

Each of the four, color-coded, wire pairs found in Ethernet cable are capable of carrying a single analog signal up to 50 feet. Connect male or female RCA plugs to each twisted pair on one end of the Ethernet cable. The solid color wire in each pair should be secured to an RCA plug's center pole terminal, while the striped wire goes to ground. On the opposite end of the Ethernet cable, choose and attach a connector suitable for the desired application. 8P8C connectors are standard for Ethernet and can be attached in male or female form. Use one of the Ethernet wiring standards for 8P8C connectors and remember to use the same pin-out when making the second adapter. A pair of adapters should be tested for signal integrity and correct wiring before being installed between expensive equipment.
