How to Connect a Laptop to a TV Using RCA

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

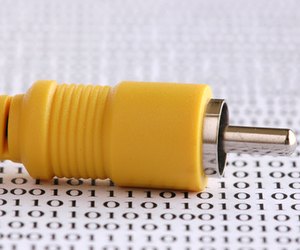

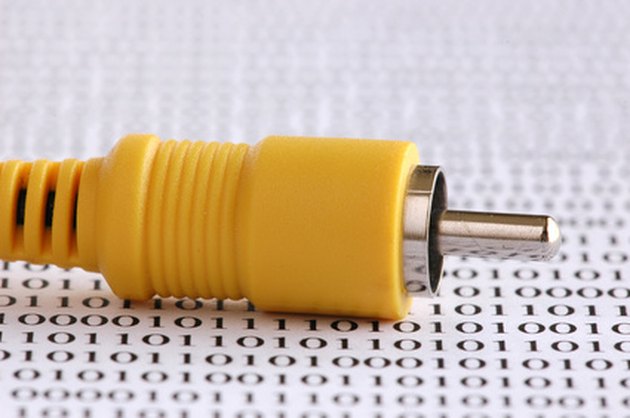

Older TVs use RCA video inputs.

Connect your laptop to a TV set that uses RCA video connections with an adapter cable. This cable converts the VGA signal from your laptop to an RCA signal. Hook up a VGA cable to the adapter, then connect it to the laptop's video output port, which is typically used for connecting an external monitor. Most computer and electronics stores sell VGA to RCA adapters.

Advertisement

Step 1

Push the yellow plug on one end of the RCA video cable into the matching yellow video input on the back of the TV. Connect the plug on the other end to the RCA jack on the adapter.

Video of the Day

Step 2

Connect the plug on the VGA cable to the matching port on the adapter. The three rows of metal pins in the plug must fit into the corresponding holes on the adapter. Tighten the screw on each side of the plug to prevent the cable from pulling out of the adapter.

Advertisement

Step 3

Hook up the plug on the other end of the cable to the video port on the laptop, which is typically on the back or left-hand edge.

Step 4

Turn on the laptop and TV, then switch to the RCA input (usually done by pressing the "Input" button on the television's remote).

Advertisement

Advertisement

Step 5

Press and hold the "Fn" (Function) key on the laptop, then press the numbered function key on the top row of the keyboard that corresponds to the video output connection. Some laptops will have "LCD/CRT" printed on one of the function keys. The laptop screen will appear on the TV screen when the "Fn" and function key are pressed at the same time.
