How Do I Identify a Diode's Value?

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

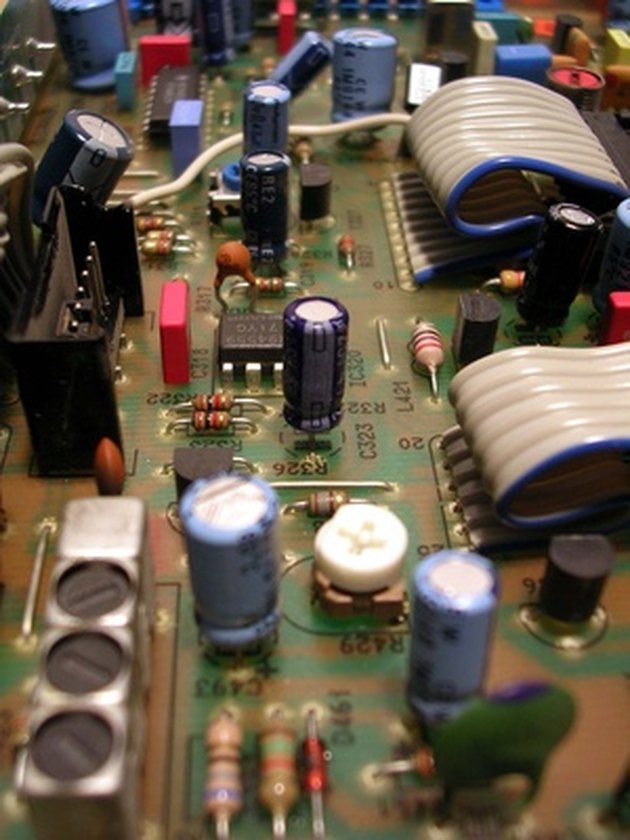

A diode rating can be determined by its color pattern.

Diodes allow conduction of electric current in one direction while blocking current from the reverse direction. Diodes come with colored stripes that help you read the value on the diode.

Advertisement

Reading the Stripes

Video of the Day

Hold the diode with the separate colored stripe to the left. The stripe identifies the cathode, that is, the direction the current flows. In this position you can now read the stripes from the left going right.

Advertisement

Video of the Day

Identify the first and the second stripes if the diode has three stripes. If it has four stripes identify the colors of the first three stripes. Write them down.

Color Code Table

The color coding rating table below is used to identify the value of each color code:

Advertisement

Black – 0 Brown – 1 Red – 2 Orange – 3 Yellow – 4 Green – 5 Blue – 6 Violet – 7 Gray – 8 White – 9

Tolerance Rating

The last stripe (as long as there are 3 or less) is used to determine the number of zeros. For example, red, red, red will have a value of 2,200 ohms. A fourth band is an accuracy tolerance band. The tolerance rating is shown below:

Advertisement

Advertisement

Gold - +/- 5% Silver - +/- 10%

Compute by adding or subtracting the percentage to or from the value result of the three stripes.
