How to Disassemble a Camera Lens

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

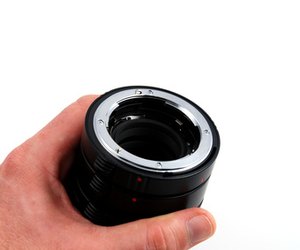

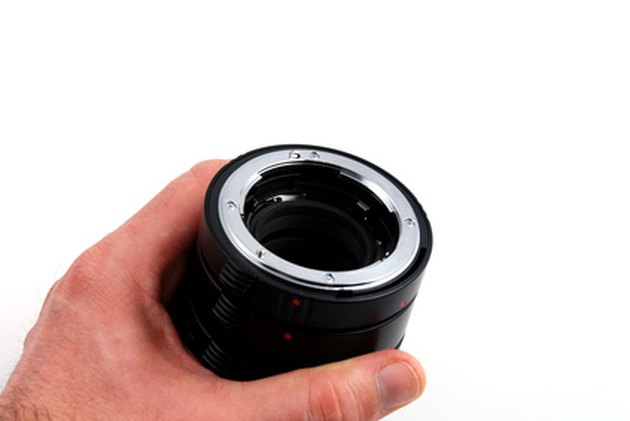

Lenses can be taken apart fairly easily; putting them back together is another matter.

Camera lenses are precision pieces of equipment and should be taken apart only by a trained technician who will know how to put them back together. However, for individuals who like to know how things work, taking apart a camera lens can be very interesting. Different lenses have different elements. There a wide array of lenses on the market today, and each one is a little different.

Advertisement

Step 1

Hold the lens so you can view the rear portion of the lens and mounting ring that connects to the camera. Locate the small Phillips screws in the rear of the lens. Most lenses will have four of these screws.

Video of the Day

Step 2

Unscrew the Phillips screws using a small jeweler's screwdriver. Set the screws aside.

Advertisement

Step 3

Carefully lift off the mounting ring from the lens. If your lens is autofocus or a new lens that works through electronic contacts, look for a wiring harness that will be connected to the mounting ring. Use a pair of tweezers to disconnect this harness. Remove the mounting ring and set aside.

Advertisement

Step 4

Unscrew the small Phillips screws on the side of the lens barrel. There are usually two of these screws. Longer telephoto lenses may have two sets of these screws, one set toward the front, and another set toward the rear of the lens. Remove the screws and set them aside.

Advertisement

Step 5

Hold the lens in both hands, and gently pull apart. Some lenses may have an external ring at the front of lens that will need to be removed; this will become apparent as you take apart the lens.

Step 6

Remove the internal lens and electronic elements from inside the lens by either removing the screws or prying apart the elements.
