How Do Gramophones Work?

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

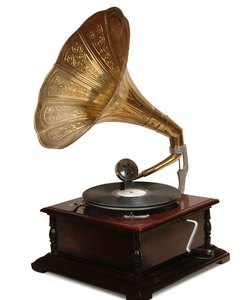

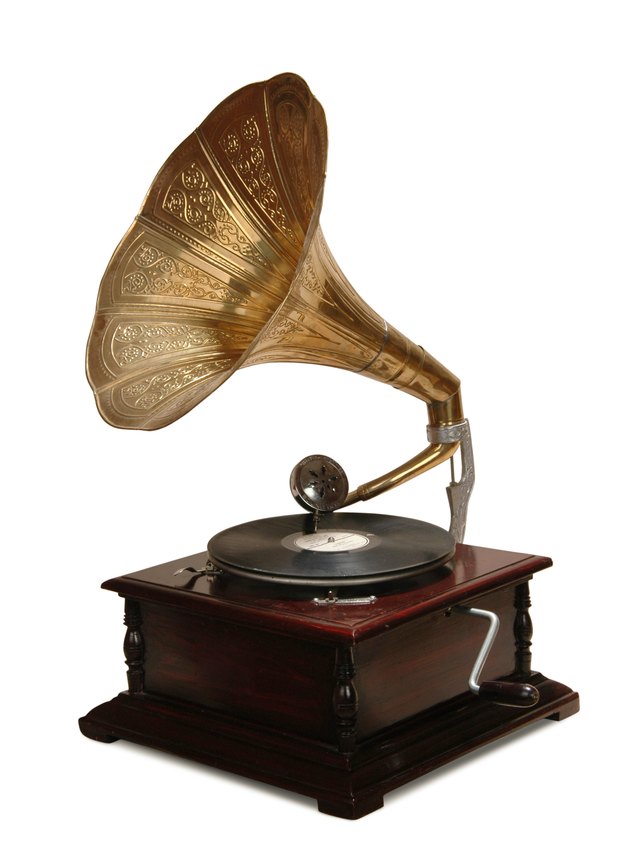

A gramophone (a phonograph) on a table.
Image Credit: CEM AYDIN/iStock/Getty Images


"Gramophone" is a term that can be used to refer to any record player (as can the term "phonograph"). In general, however, the term is used to refer to early record players that were driven by mechanical means and reproduced sound without electrical amplification. These record players are quite different from modern turntables, but the records that store the sound and the needles that turn it into audible music work in essentially the same way.


The Gramophone Record

Except for the early cylinder records invented by Thomas Edison, all records use a spiral groove to store sound. The earliest records had recordings on only one side, but soon companies started printing double-sided records which could store twice as much sound. The groove in the record looks straight and uniform, but it actually has small back-and-forth eddies which store the sound.


Video of the Day

The Gramophone Player

Like other record players, gramophones read the sound with a small needle which fits into the groove in the record. That needle is attached to a diaphragm, which in turn is attached to a horn. The record is turned at a fairly constant speed by a spring-driven motor. As the record turns, the grooves make the needle vibrate back and forth. These vibrations are transmitted to the diaphragm, which itself vibrates, creating sound. That sound is then channeled out of the horn into the room.



Early Records

Early records were made by machines that worked like gramophone players, only in reverse. Musicians would play into the horn, which would channel the sound into the diaphragm. The diaphragm would transfer the sound vibrations into a needle. The needle itself rested on a record topped with a layer of wax. As the needle wiggled, it would inscribe the sound into the wax. Finally, the record would be treated to fix the recording so it could be played back.
