How to Make a Subwoofer Cable

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Powered subwoofers used in home theater systems use a very specific type of cable for connection to the home theater receiver. This cable carries a mono signal from the receiver to the amplifier, and consists of a two-conductor wire with a single RCA plug on either end of the wire. If you'd like to make your own cable, either to save some money or to make a custom-length cable, you can do it with some basic materials and simple tools.

Advertisement

Step 1

Cut a length of wire long enough for your needs by taking into account the distance between your receiver and powered subwoofer.

Video of the Day

Step 2

Strip the insulation from the ends of the wire so that each lead has 3/8" to 1/2" of bare wire exposed.

Advertisement

Step 3

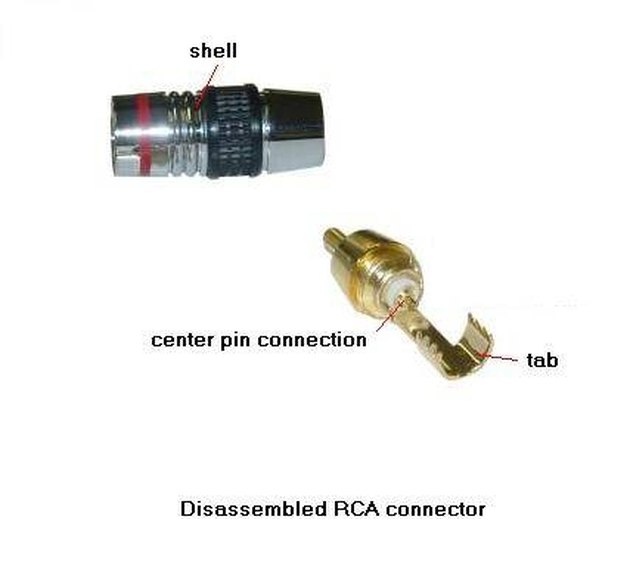

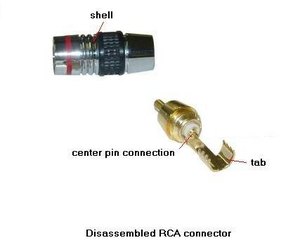

RCA plugs and shell (NL Graphics)

Unscrew the shell (jacket) of your RCA plugs. Slide them onto the wire so you can attach them to the jacks once they're connected.

Advertisement

Advertisement

Step 4

Solder the positive lead of your wire to the tip of the RCA plug. Solder the negative lead of your wire to the sleeve of the plug. When the solder cools, slide the shell over the plug and screw it down tight.

Step 5

Repeat Step 4 with the other end of your wire. When you're done, you'll have a subwoofer cable, ready to connect and use.
