How to Remove the Print Head from a Canon Pixma MP830

Techwalla may earn compensation through affiliate links in this story.

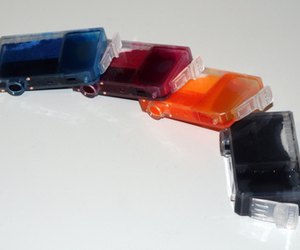

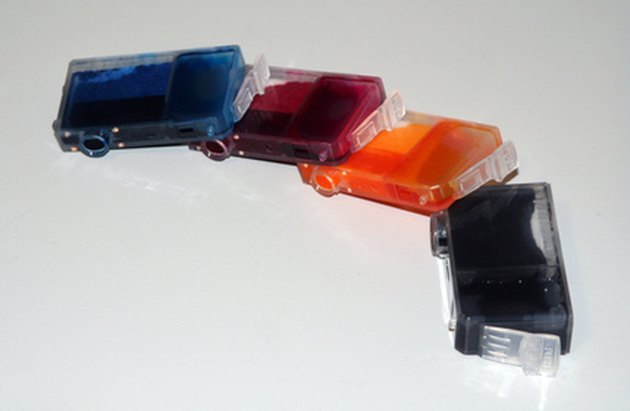

Remove the ink cartridges before attempting to remove the print head.

The multifunction Canon Pixma MP30 has printing, scanning and copying capabilities. If your prints seem faded or have streaks, ink may have built up in your print head nozzles. Try running the cleaning or deep cleaning cycles, found under the "Maintenance" option in the printer's menu. If this does not improve the quality of your prints, you might need to replace a damaged print head. Once you know where to locate the print head, removal is simple.

Advertisement

Step 1

Turn on the printer and press the "Open" button. The output paper tray will open.

Video of the Day

Step 2

Lift the printer cover containing the scanner bed. The print head holder will slide to the center for easy access.

Advertisement

Step 3

Remove ink cartridges.

Advertisement

Step 4

Pull up the gray print head lock lever on the left side of the print head holder.

Step 5

Lift the print head out of the holder.
