Types of Hard Drive Cables

Techwalla may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

This article will help to identify internal hard drive data cables. There are three main types of cables: IDE/PATA, SATA and SCSI.

Significance

There are several types of hard drives, and they all require different data cables. To connect a hard drive to a computer, one must have the proper cables and plug the cables into the appropriate places.

Advertisement

Video of the Day

Video of the Day

Background

There are three main types of hard drive data cables: IDE/PATA, SATA and SCSI. IDE (Integrated Drive Electronics) drives, also known as PATA (Parallel AT Attachment) drives, are commonly found in personal computers. However, manufacturers rarely install IDE/PATA drives in new personal computers as of early 2009: These drives usually are found only in older computers. The IDE/PATA technology was designed in 1986 and has mostly been superseded by the SATA technology in new personal computers. SATA (Serial Advanced Technology Attachment) drives are also commonly found in personal computers; its technology was developed in 2003. SCSI (Small Computer System Interface) drives usually are found only in high-end server/mainframe computers. Although the SCSI technology has existed since 1981, it has been revised numerous times since then; SCSI drives are still used today.

Advertisement

IDE/PATA Cable

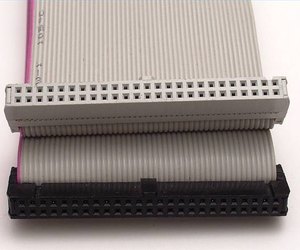

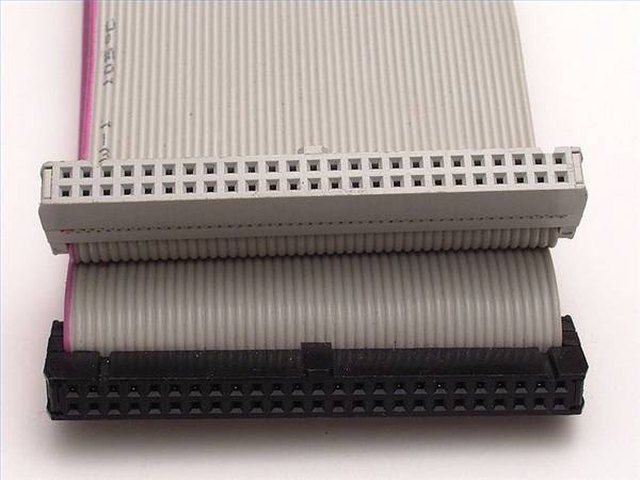

IDE/PATA data cable.

An IDE/PATA hard drive cable is a ribbon cable containing 40 pins. Either one or two devices may be connected to an IDE/PATA cable, and the devices need not be of the same type. For example, an IDE/PATA DVD-R drive may be connected along with an IDE/PATA hard drive on the same cable.

Advertisement

Advertisement

SATA Cable

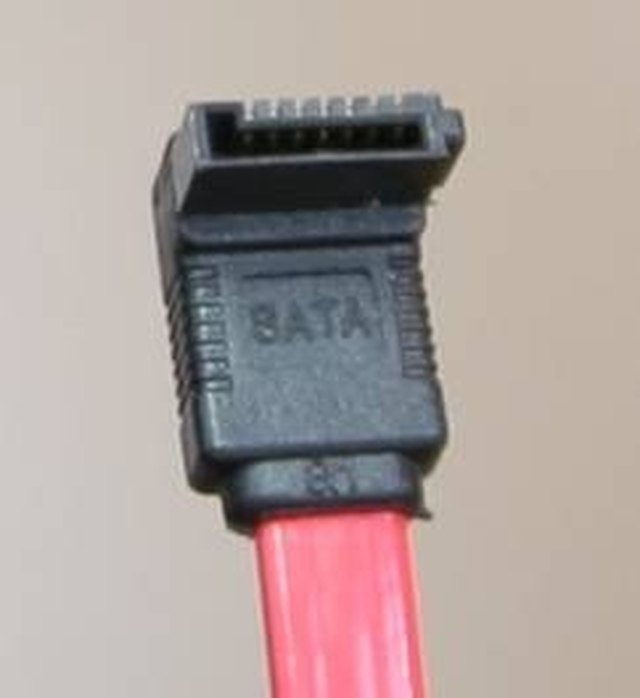

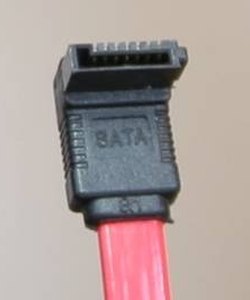

SATA data cable.

A SATA hard drive cable has seven conductors and is smaller than an IDE/PATA cable. A SATA cable connects a single hard drive to a single connector on the SATA controller, which is usually found on the computer's motherboard.

Advertisement

SCSI Cable

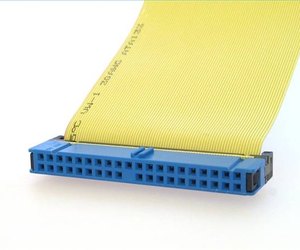

SCSI 50-pin cable - by Smial on Wikimedia, Creative Commons Attribution ShareAlike 2.0 Germany.

SCSI cables look similar to IDE/PATA cables in that both drives use ribbon cables. However, SCSI cables have more pins than IDE cables. Depending on the SCSI interface, a SCSI cable may have 50 or 68 pins (IDE/PATA drives have 40). Like IDE, multiple SCSI devices can be connected to a single channel through "daisy chaining." Depending on the SCSI interface, as many as 7 or 15 devices may be connected to a single SCSI channel.
