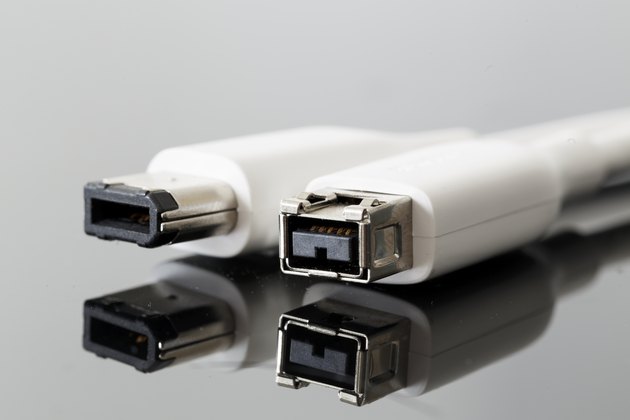

The FireWire serial standard and the more recent Thunderbolt provide high-speed connections for the Mac and peripherals.
Image Credit: okan dilek/iStock/Getty Images

FireWire, Apple's name for the IEEE-1394 serial bus standard, is a general purpose interface that predates USB and can be used to connect multiple devices to a computer or to enable high-speed transfers between computers. Often used to connect consumer electronics or to connect peripherals to a computer, the IEEE-1394 standard is also used in Sony's iLink technology. By 2014, Apple replaced FireWire with the Thunderbolt interface on new Mac machines.

Advertisement

FireWire Specifications

Video of the Day

The FireWire standard moves data at 400 Mbps, with the faster IEEE-1394b standard -- FireWire 800 -- moving data at 800 Mbps. An isochronous standard, FireWire streams data in real time and, as a result, is commonly used to connect set-top boxes and other audio equipment. It supports multiple connector types and features a six-pin cable that plugs into the computer and a four-pin cable that connects to the device.

Advertisement

Video of the Day

FireWire Common Uses

Televisions and set-top boxes often include a FireWire interface, so it can be used to build a home theater system that is plugged in to the Mac. It is also commonly used in connecting consumer electronics, external storage and a wide variety of multimedia devices. FireWire can be used to connect two networks or two computers together by running TCP/IP over FireWire.

Advertisement

Pros and Cons of FireWire

FireWire has many more pros than cons. Though FireWire cable is more expensive than other connectivity methods, it carries several advantages, not the least of which is the speed, which makes it useful in connecting camcorders and other multimedia devices. Another benefit is that the cable transfers power at the same time as it transfers data, which means there are fewer potentially dangerous power points, and it is possible to charge and sync devices at the same time. In addition, since FireWire 800 can operate for up to 100 meters, it can be useful across large rooms or for making connections between rooms.

Advertisement

Advertisement

Thunderbolt Interface

Apple has replaced FireWire with the Thunderbolt technology, which is standard on all new Mac computers. Operating at a much higher speed of 10 Gbps, it is up to 25 times faster than FireWire 800. The Thunderbolt technology also delivers compatibility with the latest 4K video display devices. Like FireWire, Thunderbolt can connect multiple peripherals to the Mac, share peripherals between computers, and create a link between two or more Mac computers.
