How to Bridge a Motorola SBG6580

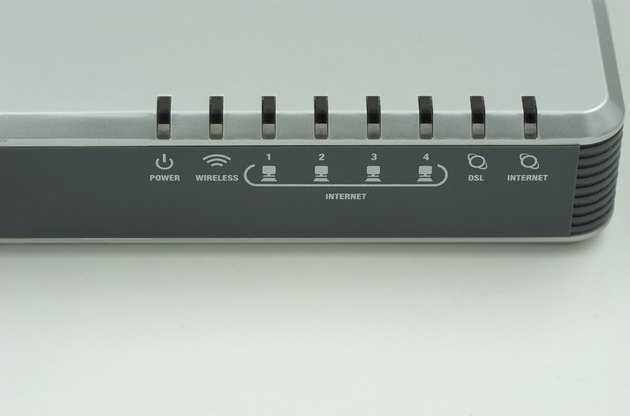

Image Credit: Bank215/iStock/Getty Images

The Motorola SBG6580 is a cable modem with a built-in wireless router. If you prefer to use a separate router, you can shut down the wireless antenna and put the SBG6580 into bridge mode by disabling the network address and port translation setting. Disabling NAPT prevents the SBG6580 from handing out IP addresses to connected devices. Like most routers, the SBG6580 has an HTML setup screen where you can change the settings through a computer's browser.

Advertisement

Step 1

Unplug the coaxial cable from the back of the modem.

Video of the Day

Step 2

Connect a computer to one of the Ethernet ports.

Step 3

Open the Web browser; then type "http://192.168.0.1" in the address bar. Press "Enter," and the browser will display a login screen.

Advertisement

Step 4

Enter the user name and password. The default user name is "admin," and the default password is "motorola."

Step 5

Select the "Basic" tab, and set "NAPT mode" to "Disabled." Click "Apply."

Advertisement

Step 6

Set the "DHCP" drop-down menu to "No."

Advertisement

Step 7

Click the "Wireless" tab, and select "Primary Network" on the left menu bar. Set the "Primary Network" drop-down menu to "Disabled."

Advertisement

Step 8

Click the "Advanced" tab, and select "Options."

Step 9

Check the "Enable" box next to "Rg PassThrough." Enter the MAC address of your router in the box next to the "Add Mac Address" button; then click the button.

Step 10

Click "Apply," and restart the modem.
