How to fix USB flash drive with low-level format

When an USB flash drive goes wrong in a way that you could not format or access it with your window explorer, you have to recover it with low level format tool.

...
USB flash drive

Common Causes are: 1. fake flash drive 2. flash drive removal without using "safely remove hardware" 3. Unplug flash drive while file writing to it

Common errors are: 1. "unable to access" 2. "track 0 error" 3. "write protection" 4. "Size is 0 byte"

The method is applicable to pen drive or any kind of flash memory - SDHC, microSD, CF and etc.

Step

Download and Install Low Level Format Tool (LLF)

...
Installation

Step

http://hddguru.com/content/en/software/2006.04.12-HDD-Low-Level-Format-Tool/

...
Flash Drive Selection

Step

Insert Your USB Flash Drive and Start LLF Program

Step

You will see your USB flash drive is showed inside the program window. Click on your USB flash drive and then click continue.

...
Formatting

Step

Formatting Your Flash Drive

Step

Click on "Low-Level Format" in Tab You data will be erased and irreversible. If you want to recover your data, please check my another article.

Step

It will take roughly 15 min on 4GB or longer on bigger flash drive size.

...
Property

Step

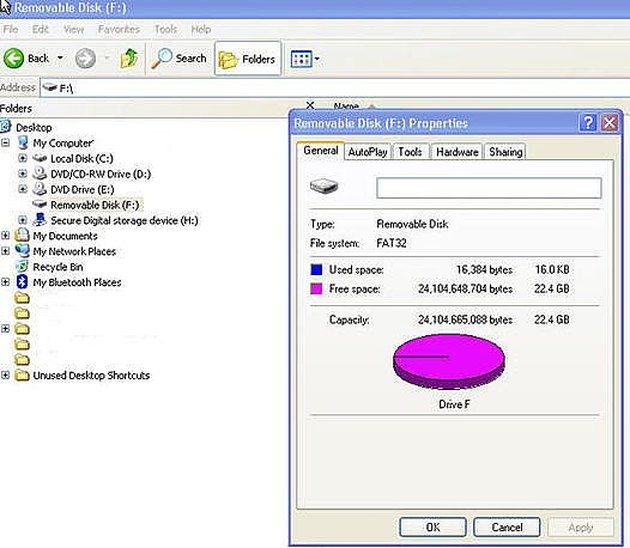

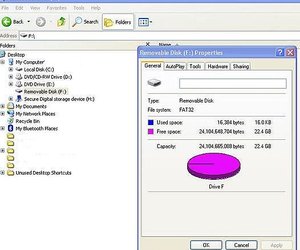

Verify Your USB Flash Drive

Step

Click on window explorer and check your new formatted flash drive.
