How to Format a Western Digital My Passport to Mac & PC

Reformatting a Western Digital My Passport hard drive to function well on Windows and Macintosh systems is neither time-consuming nor technologically demanding. Back up all important information on the drive before beginning; any data left on the drive will be destroyed during the reformatting process. For the most desirable results when reformatting on Windows systems, use Western Digital's Formatting Utility. Due to a system limitation, Windows 2000, Windows XP and Windows Vista can only create 32GB FAT32 partitions, regardless of the drive's capacity.

Step 1

Plug the drive in.

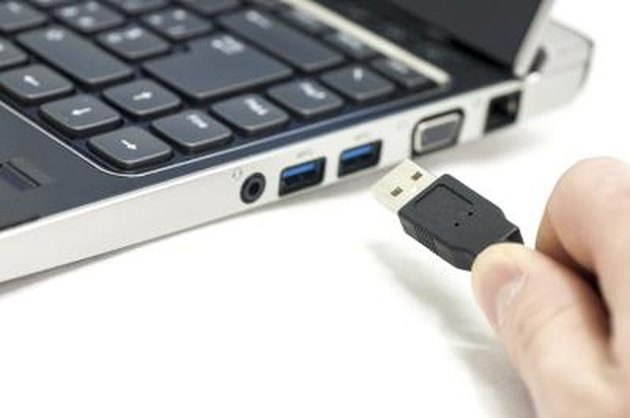

Connect the Western Digital My Passport hard drive to the computer. Power on both devices.

Step 2

Launch Disk Utility.

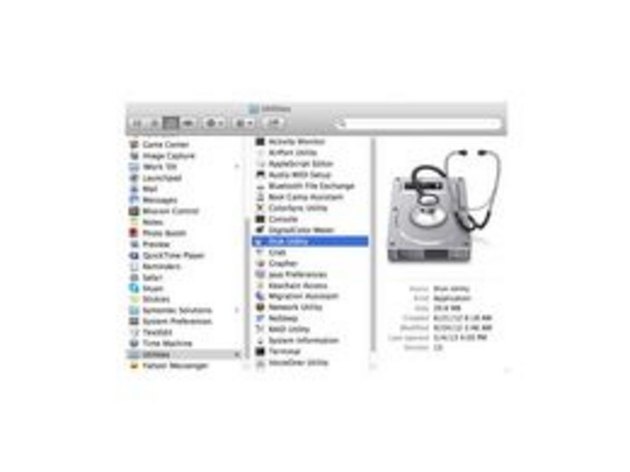

Click the Finder, open the "Applications" folder, open the "Utilities" folder and choose "Disk Utility."

Step 3

Select the WD Passport drive.

Select the drive you wish to reformat.

Step 4

Go to the Erase tab.

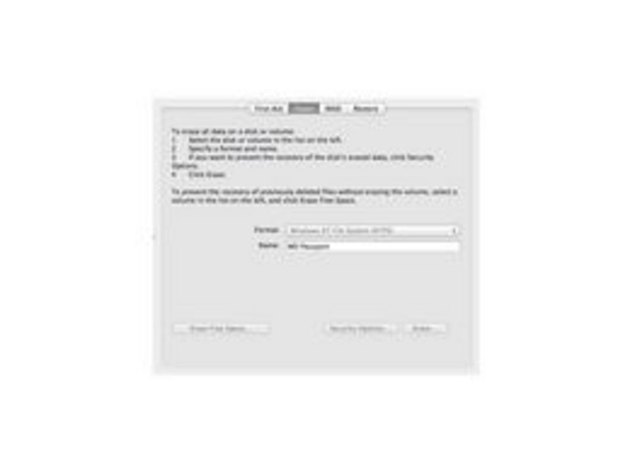

Click "Erase," and pull down the Format menu. Choose "FAT32." Enter a hard drive name, if desired.

Step 5

Proceed to formatting.

Click "Erase." A confirmation screen opens, stating that all information on the drive will be lost if erased. Click "Erase." Once completed, the erased drive will function on both Windows and Macintosh systems.

Step 6

Download the Western Digital FAT32 Formatting Utility.

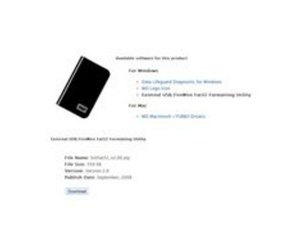

Download and install the Western Digital FAT32 Formatting Utility.

Step 7

Plug the drive in.

Connect the Western Digital My Passport hard drive to the computer. Power on both devices.

Step 8

Launch the Formatting Utility.

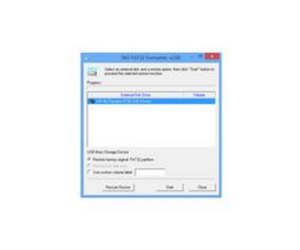

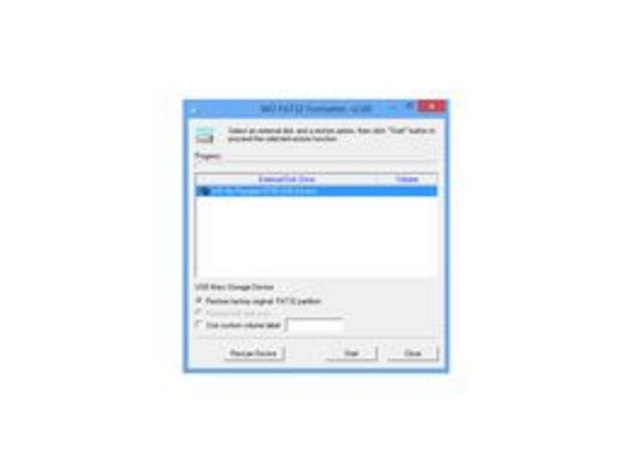

Open the FAT32 Formatting Utility and select the desired external hard drive. Ensure that "Restore Factory Original FAT32 Partition" is selected.

Step 9

Proceed to formatting.

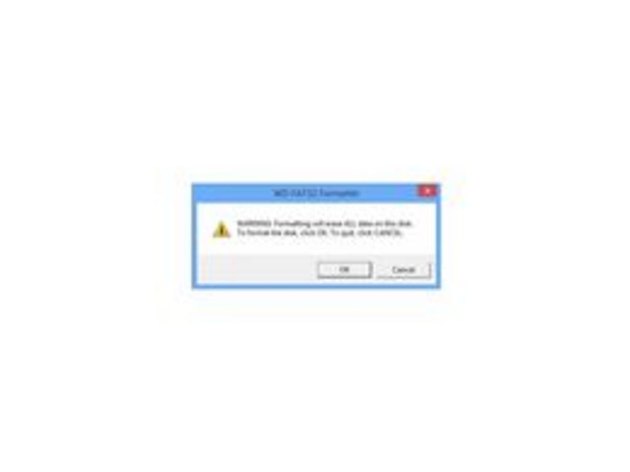

Click "Start." A warning message opens, stating that all data on the drive will be destroyed. Click "OK" to continue. Click "Yes"' to navigate through the prompts.

Tip

Create a backup of all important data before reformatting Western Digital My Passport hard drives. If you are using a portable computer, make sure it is plugged in before beginning the reformatting process.

Warning

FAT32 formated drives can only recognize files smaller than 4GB. Mac OS X creates invisible files that may appear by default on Windows systems. If those files are moved or changed, the file may become irreparably corrupted. As of Mac OS X 10.6, the system can only read -- not write -- files on NTFS-formatted drives.
